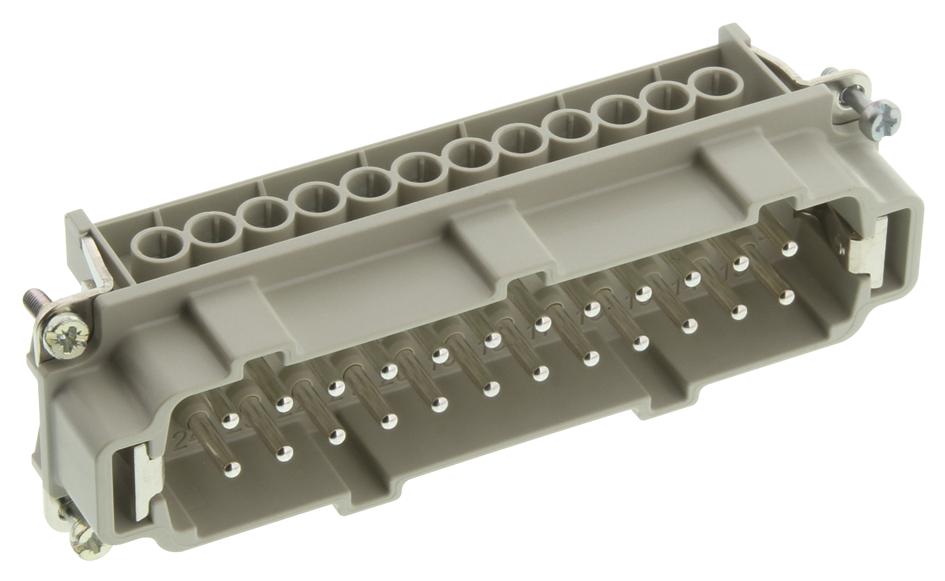

EPIC - 10.1960 - Heavy Duty Connector, 24+PE, Wire Protection, HBE, Insert, 24 Contacts, 24B, Plug, Screw Pin
- Product Range: HBE Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 24 Contacts
- Rectangular Shell Size: 24B
- Gender: Plug
- Heavy Duty Contact Type: Screw Pin
- Current Rating: 16A
- SVHC: No SVHC (15-Jan-2019)
- Connector Type: Rectangular Power
- Contact Gender: Pin
- Contact Material: Copper Alloy
- Contact Plating: Silver Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- Degree of Pollution: 3
- For Use With: H-BE 24 Housings & Hoods
- IP / NEMA Rating: IP65
- Insert Type: Signal
- No. of Contacts: 24Contacts
- No. of Rows: 2 Row
- No. of Rows: 2Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Range: HB24
- Termination Method: Screw
- Test Voltage: 6kV
- Voltage Rating: 600V
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 20AWG
- Working Voltage: 400V
