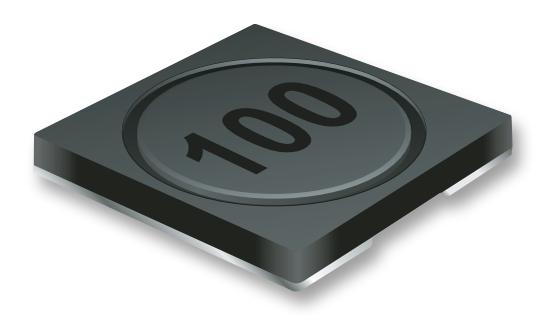

BOURNS - SRR4011-R47YL - Power Inductor (SMD), 470 nH, 3.2 A, Shielded, 3.8 A, SRR4011, 4.8mm x 4.8mm x 1.15mm
- Inductance: 470nH
- RMS Current (Irms): 3.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 3.8A
- Product Range: SRR4011 Series
- Power Inductor Case: 4.8mm x 4.8mm x 1.15mm
- DC Resistance Max: 0.03ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 4.8mm
- External Length / Height: 1.15mm
- External Width: 4.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 7
- Q Test Frequency: 25.2MHz
- Resonant Frequency: 221MHz
- Self Resonant Frequency Min: 221MHz
- Test Frequency: 25.2MHz
