Omschrijving

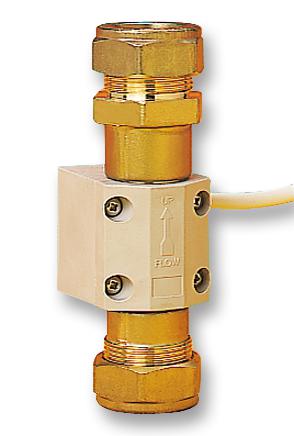

TE CONNECTIVITY - FS-05 - Flow Switch, FS Series, 22 mm Port Size, 10 bar, SPST-NO, 250 Vac, 3 A
- Flow Rate: 1l/min
- Flow Rate Max: -
- Pressure Max: 10bar
- Supply Voltage DC Min: -
- Supply Voltage DC Max: -
- Accuracy %: -
- Port Size: 22mm
- Product Range: FS Series
- Connection Size: 22mm
- Contact Configuration: SPST-NO
- Contact Current AC Max: 3A
- Contact Current DC: 0.5A
- Contact Voltage AC Max: 250VAC
- External Length / Height: 112.5mm
- Flammability Rating: UL 94-HB
- Lead Length: 1m
- Material: Brass
- Operating Temperature Max: 100°C
- Operating Temperature Min: -30°C
- Switch Point: 1l/min
- Switching Current DC Max: 3A
