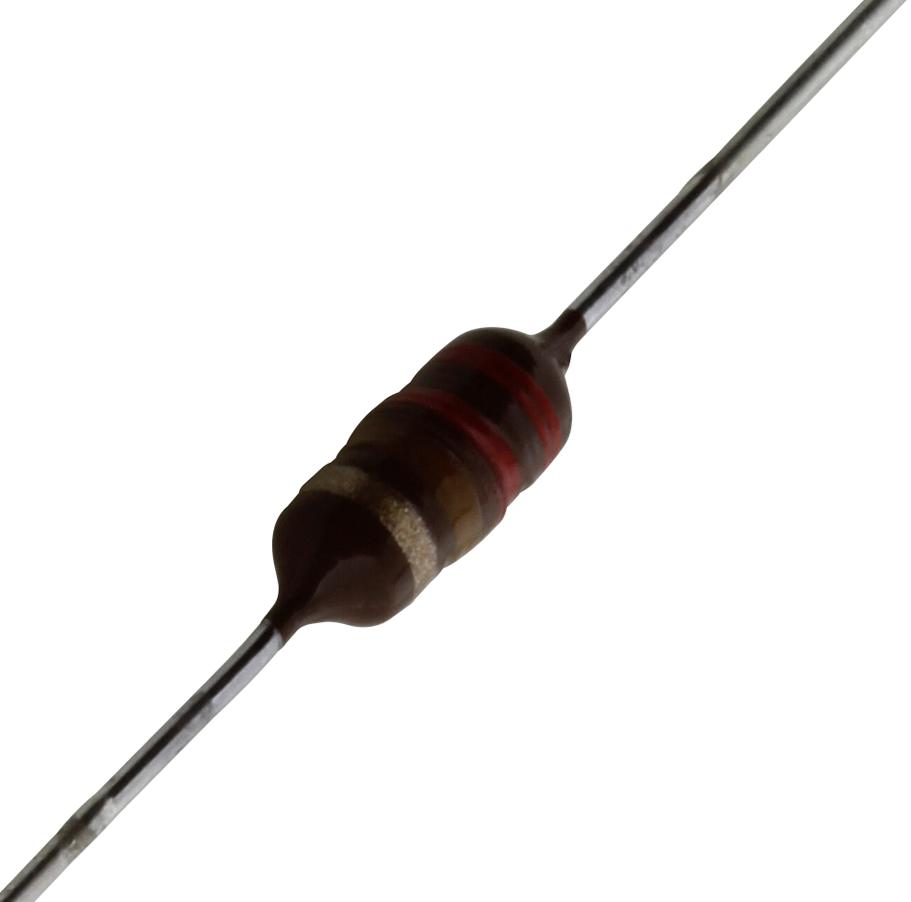

EPCOS - B78108S1332K000 - RF Choke, B78108S BC, 3.3 µH, 900 mA, 0.29 ohm, ± 10%, 115 MHz
- Product Range: B78108S BC Series
- Inductance: 3.3µH
- DC Current Rating: 900mA
- DC Resistance Max: 0.29ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 115MHz
- SVHC: Lead (27-Jun-2018)
- Body Diameter: 4mm
- Core Material: Ferrite
- Current Rating: 900mA
- External Length / Height: 9.2mm
- Inductance Measurement Frequency: 1MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.63mm
- Lead Length: 25mm
- No. of Pins: 2Pins
- Q Factor: 60
- Q Test Frequency: 7.96MHz
- Tolerance +: 10%
- Tolerance -: 10%
