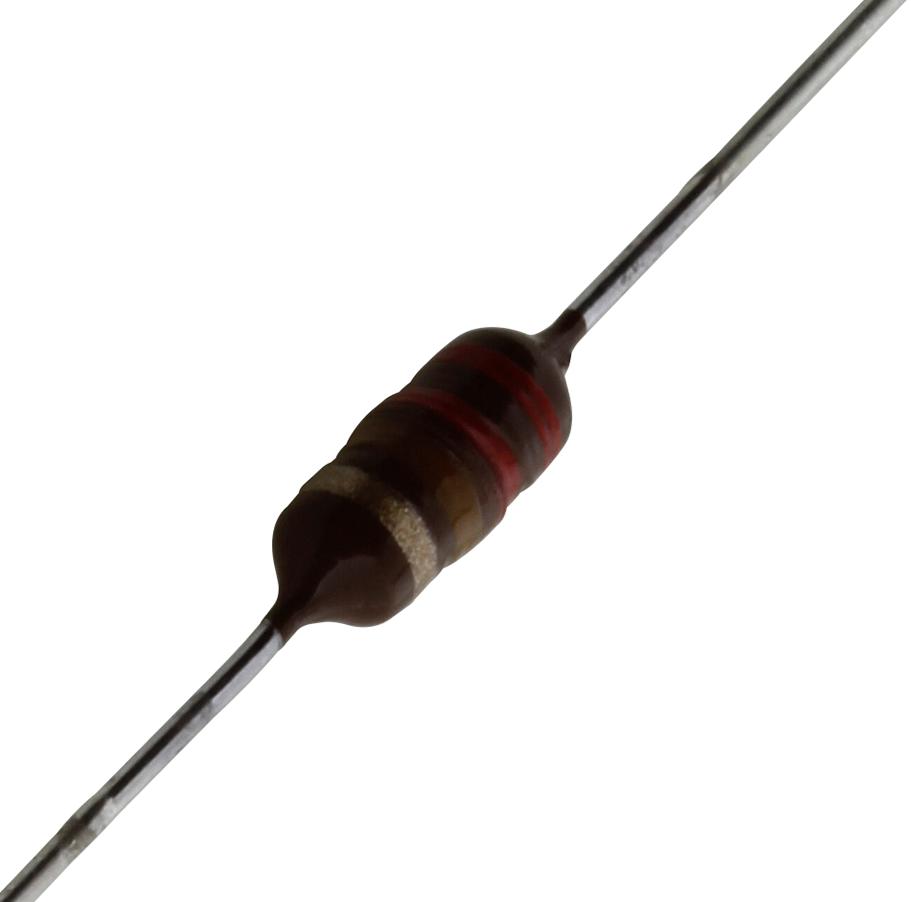

EPCOS - B78108S1224J000 - RF Choke, B78108S BC, 220 µH, 250 mA, 3.3 ohm, ± 5%, 3.7 MHz
- Product Range: B78108S BC Series
- Inductance: 220µH
- DC Current Rating: 250mA
- DC Resistance Max: 3.3ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 3.7MHz
- SVHC: Lead (27-Jun-2018)
- Body Diameter: 4mm
- Core Material: Ferrite
- Current Rating: 250mA
- External Length / Height: 9.2mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.63mm
- Lead Length: 25mm
- No. of Pins: 2Pins
- Q Factor: 70
- Q Test Frequency: 796kHz
- Tolerance +: 5%
- Tolerance -: 5%
