Omschrijving

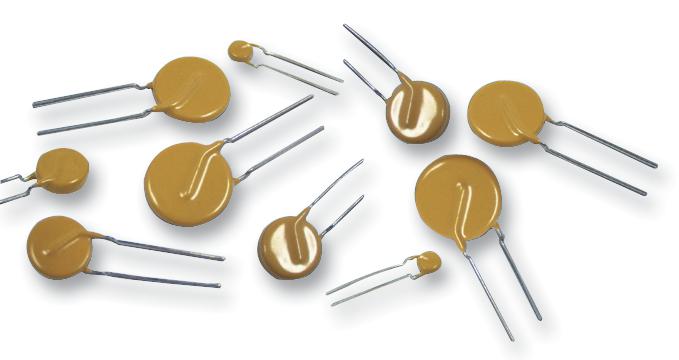

WURTH ELEKTRONIK - 820554001 - TVS Varistor, 40 V, 56 V, WE-VD, 150 V, Disc 5mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 40V
- Voltage Rating V DC: 56V
- Product Range: WE-VD Series
- Clamping Voltage Vc Max: 150V
- Varistor Case Style: Disc 5mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 100A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 2.1J
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 5mm
- Capacitance: 500pF
- Clamping Voltage: 150V
- Clamping Voltage @ 8/20µs Max: 150V
- Operating Temperature Range: -40°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 100A
- Suppressor Type: Varistor
- Surge Current: 100A
