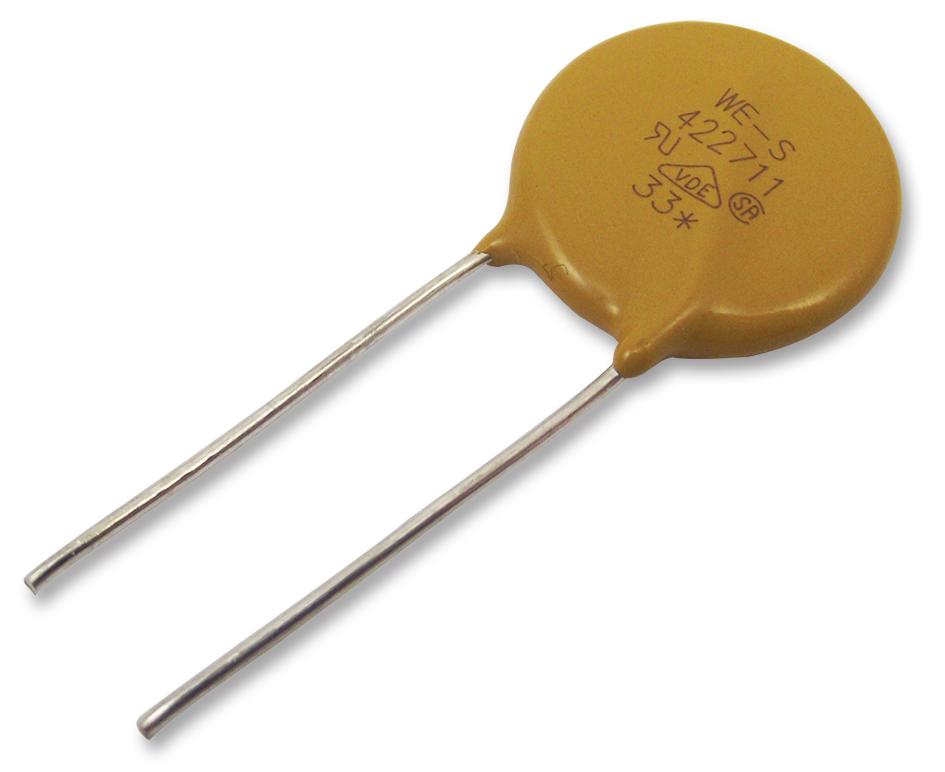

WURTH ELEKTRONIK - 820422711 - TVS Varistor, 275 V, 350 V, WE-VD, 710 V, Disc 20mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 275V
- Voltage Rating V DC: 350V
- Product Range: WE-VD Series
- Clamping Voltage Vc Max: 710V
- Varistor Case Style: Disc 20mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 10kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 303J
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 20mm
- Capacitance: 860pF
- Clamping Voltage: 710V
- Clamping Voltage @ 8/20µs Max: 710V
- Operating Temperature Range: -40°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 10000A
- Suppressor Type: Varistor
- Surge Current: 10kA
