Omschrijving

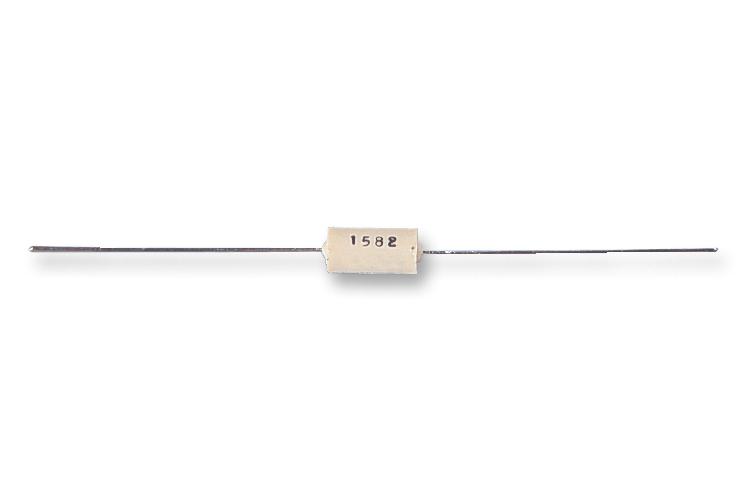

FERROPERM - 1582 4.7UH 1.3A - RF Choke, RF Choke, 1582, 4.7 µH, 1.3 A, 0.12 ohm, ± 10%, 95 MHz
- Product Range: 1582 Series
- Inductance: 4.7µH
- DC Current Rating: 1.3A
- DC Resistance Max: 0.12ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 95MHz
- Body Diameter: 5.2mm
- Core Material: Ferrite
- External Length / Height: 11.4mm
- Inductance Measurement Frequency: 8MHz
- Inductor Type: Inductor
- Lead Diameter: 0.73mm
- Lead Length: 35mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Q Factor: 50
- Q Test Frequency: 8MHz
- Resonant Frequency: 95MHz
